TVs' RS-232 ports enable advanced home theater control

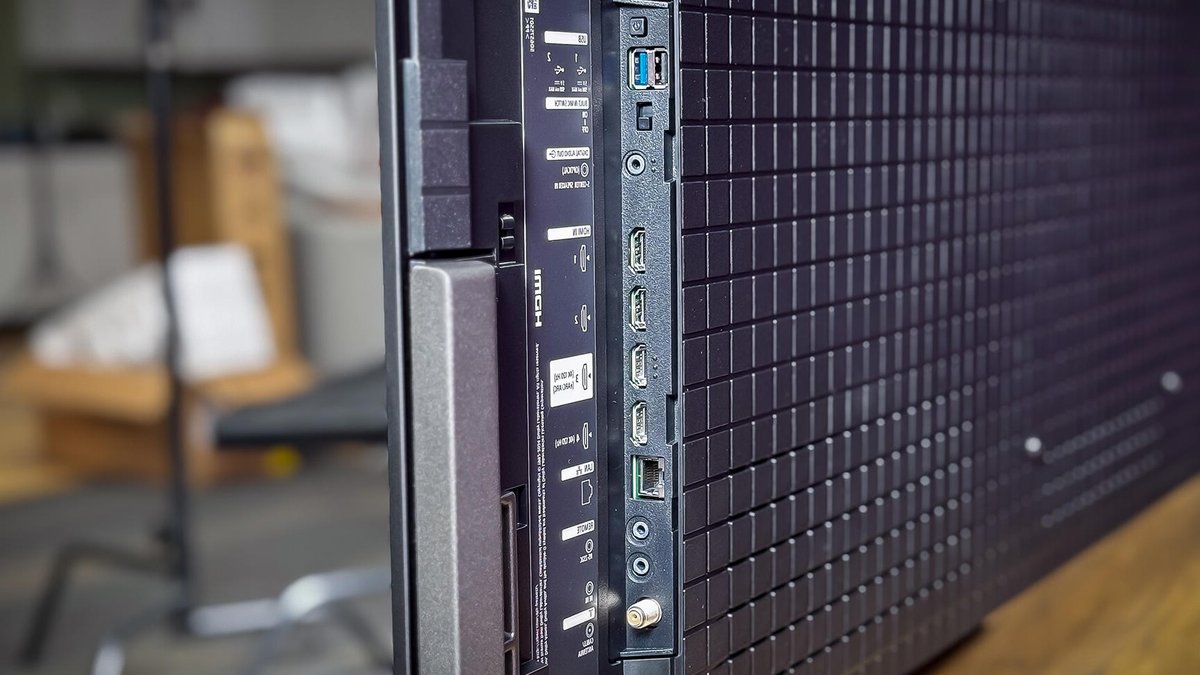

Most television owners recognize the familiar HDMI and USB connectors that appear on the rear panel of modern sets, yet many overlook a less common but still useful interface: the RS-232 serial port. This connector features nine pins arranged in a standard configuration, and it can be found on the back of numerous televisions, especially those positioned at the higher end of the market. The port supplies a range of capabilities that go beyond simple media playback, allowing enthusiasts to integrate the screen into sophisticated home-theater arrangements and broader smart-home ecosystems.

Technicians frequently employ the RS-232 port as a link between professional calibration devices and the television’s internal electronics. By attaching diagnostic tools, they can measure signal transmission strength, locate software glitches, and verify that no electrical damage has occurred within the circuitry. In addition to troubleshooting, the same connection can join several televisions to a single source device, making it possible to broadcast the same video feed across multiple displays in both residential and commercial environments.

Synchronizing Displays in Commercial Settings

In business contexts the port often serves to synchronize screens in places such as medical offices, airport lounges, and shopping-center corridors. By linking the displays through a central controller, all of them can show identical content at the same moment, which is useful for advertising, information loops, or patient-education videos.

Although the RS-232 interface is traditionally associated with enterprise installations, several premium television models include it as a standard feature. Homeowners can therefore create tailored playlists for a home-based business, a children’s play area, or a gathering space for parties. Implementing these setups does require a degree of technical competence, because the process involves writing or adapting code that tells the television how to handle automated video streams and schedule playback events.

Essential Gear for Serial Integration

To make use of the serial connection, an owner must acquire an RS-232 cable or an RS-232-to-Bluetooth adapter, and pair the hardware with a computer that can generate the appropriate command strings. In addition, a Serial Port/HDMI matrix acts as the central hub for your system, connecting your PC, main TV, and satellite screens to a single switch box for an all-in-one control solution.

For most domestic installations an 8×8 HDMI matrix provides sufficient capacity. Such a matrix offers a variety of input and output options, and many units also incorporate Ethernet and Wi-Fi connectivity, which enables users to stream internet-based services such as Netflix or HBO Max directly through the matrix. Certain models go a step further by supporting Dolby and DTS audio pass-through, allowing a separate sound system to receive high-quality audio while the television’s built-in speakers continue to operate.

Programming the RS-232 Command Set

Configuring the RS-232 port demands that the installer identify the programming language used by each device in the signal chain. Many manufacturers supply proprietary command sets, so the installer may need to modify existing scripts or develop new ones to achieve full compatibility. A number of step-by-step coding guides are available on public repositories, covering languages such as C#, Python, and Java, which can help reduce the learning curve for hobbyists and professionals alike.

Purchasers can also buy an RS-232 tester for roughly twenty dollars. The tester checks the health of the television’s serial connector by confirming that each pin is intact, measuring signal strength, and verifying that communication between the TV and the controlling computer is reliable. By providing immediate feedback on connector condition and data flow, the device helps users pinpoint problems quickly and apply corrective measures without extensive trial and error.
